无火焰泄放装置

Flameless relief device

无火焰泄放装置应用于粉体的防爆泄放，可以有效防止粉尘二次爆炸引起的巨大损失。

The flameless relief device applied to explosion-proof discharge of powder can effectively prevent the huge loss caused by secondary explosion of dust.

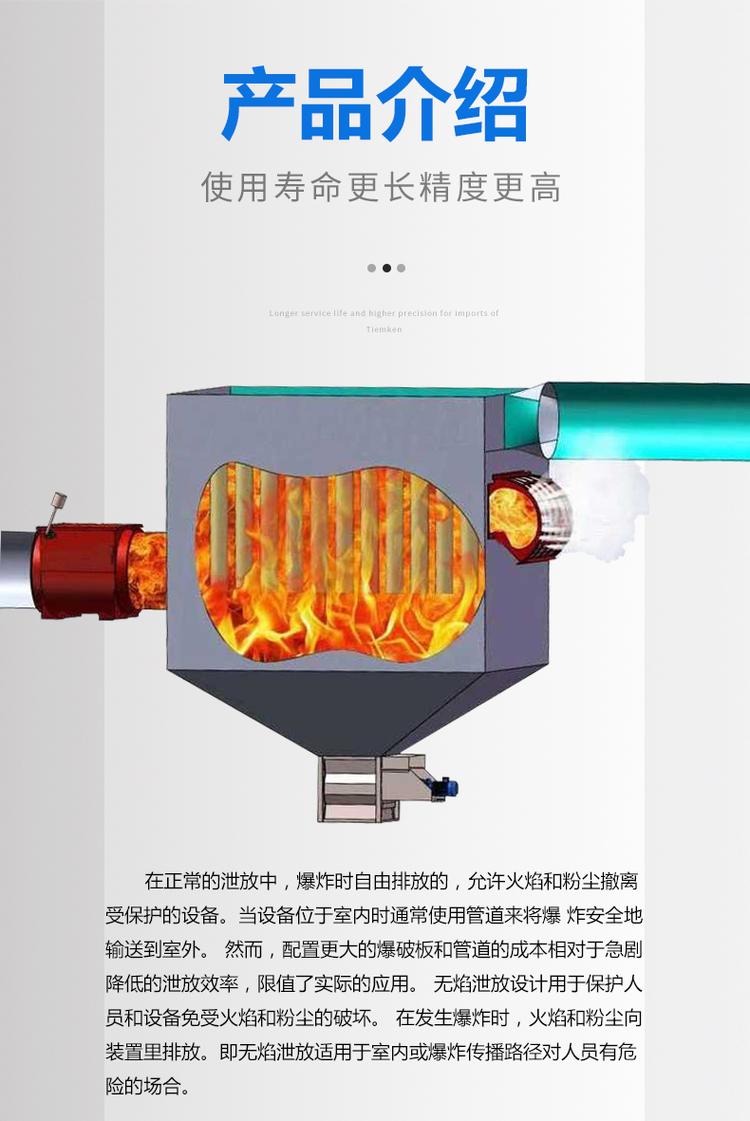

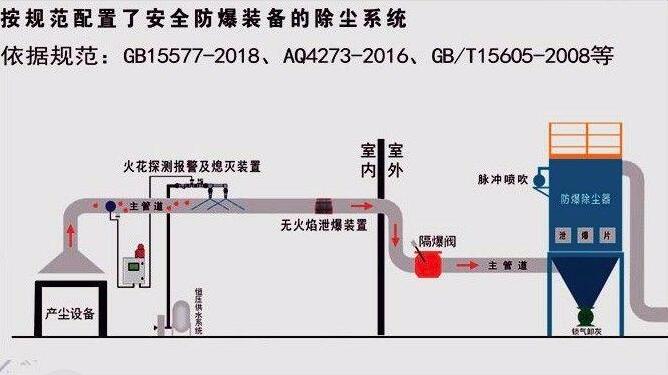

当除尘设备位于室内时，在爆破片装置泄放侧后端安装无焰泄放装置，可以让爆炸产生的火焰在通过无焰泄放装置内的阻火筛网时冷却下来并被熄灭掉，从而避免造成重大损失

When the dust removal equipment is located indoors, the a flameless relief device is installed at the back end of the discharging side of the bursting disc device, so that the flame generated by the explosion can be cooled down and extinguished when passing through the flame-retardant screen in the flameless relief device, thus avoiding heavy losses.

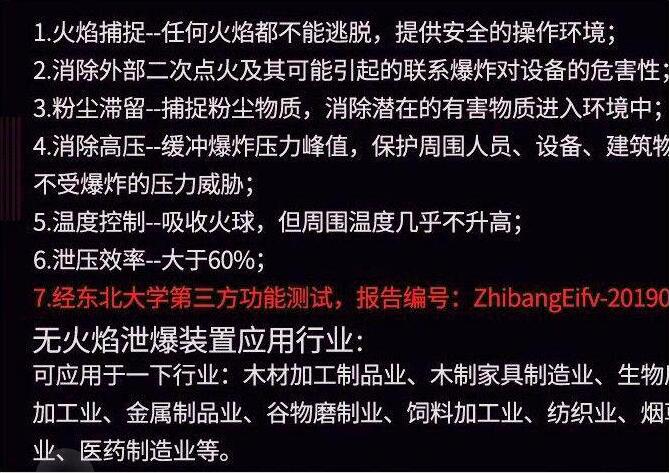

无焰泄放装置特点：

The characteristics of flameless relief device：

1、有效阻止火焰；

Effectively block the fire

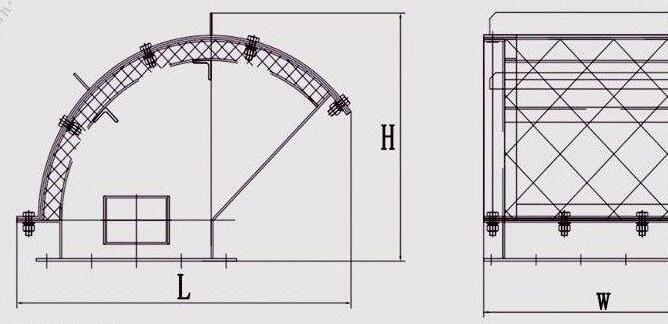

2、可按照客户尺寸加工

Processing according to customer size

3、安装简单、免维护操作；

Installation is simple, maintenance free operation

4、材料：碳钢、不锈钢；

Material: carbon steel, stainless steel;
